Retrofit Smart Switch Board : (RSSB)
​
Ever wondered how to automate your home with your existing manual switchboards?
Presenting the RSSB, in-wall switch module, which can be easily installed behind your existing module switchboard to add convenience and smartness to your home.
-
Control your appliances from anywhere on the planet through our tronX things app
-
Designed to manage most of the household appliances
-
You can activate them manually from the app, selecting the device and switching or scheduling them to turn on/off from anywhere
-
Available in both IR (only remote) and RF models.
OUR MODULES
​

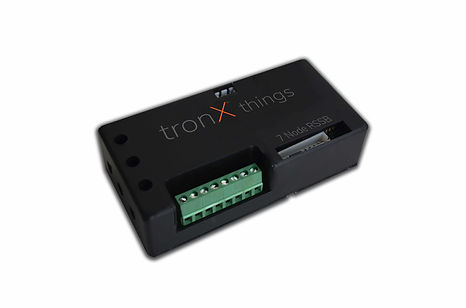

Retrofit Smart Switchboard – 7 Node
Technical specifications:
-
Can connect to 7 switches
-
1 switch: 16 A and other six switches are 7Amps.
-
Power source: 110 V – 270 V AC, 50 Hz
-
Humidity: 5% to 85% RH
-
Operating temperature: 5°C to 55°C
-
200 W per each switch if load is Resistive
-
100 W < Inductive Load, 100 W < LED Loads
Suggested for living, dining, and kitchen

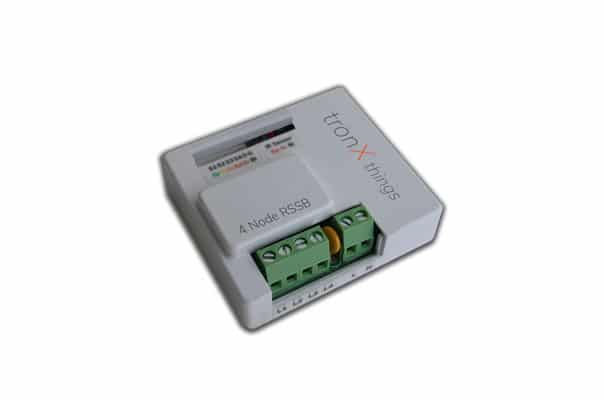

Retrofit Switch Board – 4 Node
Technical specifications:
-
Easy installation behind 4 modules or higher module switchboard
-
Can connect to 4 loads/switches
-
Power source: 110 V-270 V AC, 50 Hz
-
Load on Switches (5A): 200 W per each 5 A switch
-
Humidity: 5% to 85% RH
-
Operating temperature: 5°C to 55°C
-
200W per each switch if load is Resistive,
-
100W < Inductive Load, 100W < LED Loads
Suggested for Bedroom & Balcony
